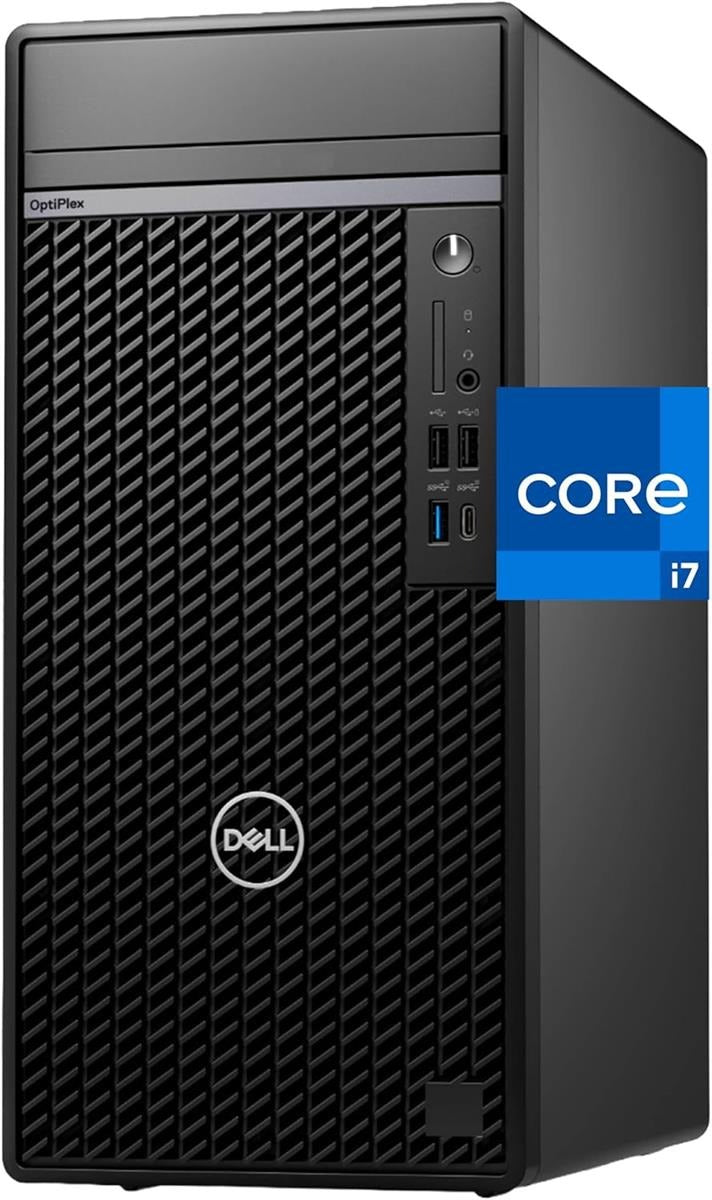

Dell Optiplex 7020, 14th generation CI7, 8gb, 512 SSD

Dell OptiPlex 7020 – Core i7‑14700, 8 GB RAM, 512 GB SSD

🧠 Processor & Chipset

• Intel Core i7‑14700 (14th Gen)

  • Approx. 20 cores (8 P‑cores + 12 E‑cores), 28 threads

  • Base clock ~2.4 GHz, Turbo up to ~5.1 GHz

  • Around 30 MB SmartCache

• Chipset: Intel Q670

💾 Memory

• 8 GB DDR5 RAM (1 × 8 GB, ~4800–5600 MT/s)

• Dual‑DIMM slots; expandable up to ~64 GB

💽 Storage

• 512 GB PCIe NVMe SSD (M.2 2280, Gen 4)

🎨 Graphics

• Integrated Intel UHD Graphics 770

🌐 Networking

• Gigabit Ethernet (RJ‑45)

• In many configurations: built-in Wi‑Fi 6E + Bluetooth via M.2 module (e.g., Intel AX210)

🔊 Audio

• On-board high-definition audio with internal speaker support

🔌 I/O Ports

Front Panel:

• USB 3.2 Gen 2×2 Type‑C (up to 20 Gbps)

• USB 3.2 Gen 2 Type‑A (10 Gbps)

• 2× USB 2.0

• Universal/multi-function 3.5 mm audio jack (headset/mic combo)

Rear Panel:

• USB 3.2 Gen 2×2 Type‑C (20 Gbps), or multiple USB 3.2 Gen 2 ports

• USB 3.2 Gen 1 Type‑A (5 Gbps)

• USB 2.0 ports (with SmartPower On functionality)

• DisplayPort 1.4a (often multiple)

• HDMI 1.4b

• RJ‑45 Gigabit Ethernet

• Audio line‑in / line‑out connectors

• Optional VGA and serial ports (depending on factory build)

🧩 Expansion & Slots

• SATA Bays: Up to 3× SATA 3.0 ports (for HDD/SSD or optical drives)

• M.2 Slots:

  • One M.2 2230 for Wi‑Fi/Bluetooth

  • One M.2 2280 for NVMe SSD

• PCIe Expansion:

  • 1× PCIe Gen 4 x16 (full‑height)

  • 1× PCIe Gen 3 x4 (full‑height)

  • 1× PCIe Gen 3 x1

  • Some Tower configs include legacy PCI slot

⚡ Power Supply

• SFF models typically include a 180 W 80 PLUS Bronze PSU

• Tower/MicroPlus may offer stronger 260 W or optional 500 W Platinum PSU

📦 Physical Specs

• Available Chassis: Small Form Factor (SFF), Micro, or Tower

• SFF Dimensions: Approx. 92 × 293 × 291 mm; weight ~4–5 kg

• Tower Dimensions: Approx. 367 × 169 × 301 mm; weight ~6–9 kg depending on expansion

🧰 Included Accessories

• Dell KB216 wired keyboard

• Dell MS116 wired optical mouse

• Optional: DVD±RW optical drive (Tower/SFF builds)

💻 Operating System

• Shipped with FreeDOS in DOS-only versions

• Many business configurations offer optional Windows 11 Pro

🛡️ Warranty

• 1‑Year limited hardware warranty
